Since 1984, more than 230 000 of these float valves have been installed in Southern Africa. The float valve is compact, robust, simple, flexible, friendly, adaptable and most importantly, low cost!
Should you have a farming, veterinary, household, garden or industrial application in which water is piped in and maintained at a level, the Aqua-brooks float valve may be your answer and water-saver.

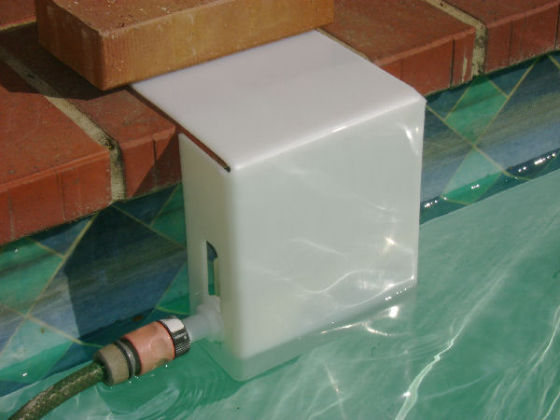

A new product called the Aqua-level, incorporating our float valve, is now available. It is used to maintain the water level in swimming pools, koi ponds, small dams etc.
Flat areas or from tank up to 8m
Hilly country or weak municipal pressure
City mains or high pressure pump
The "Aqua-brooks" float valve has been in production since 1984. It is a low-cost design that is:
1. Compact (size 165 by 65 by 130 mm open)
2. Robust (+60°C down to -7°C, UV, acid, corrosion & lime resistant)
3. Simple (one moving part is the short lever float)

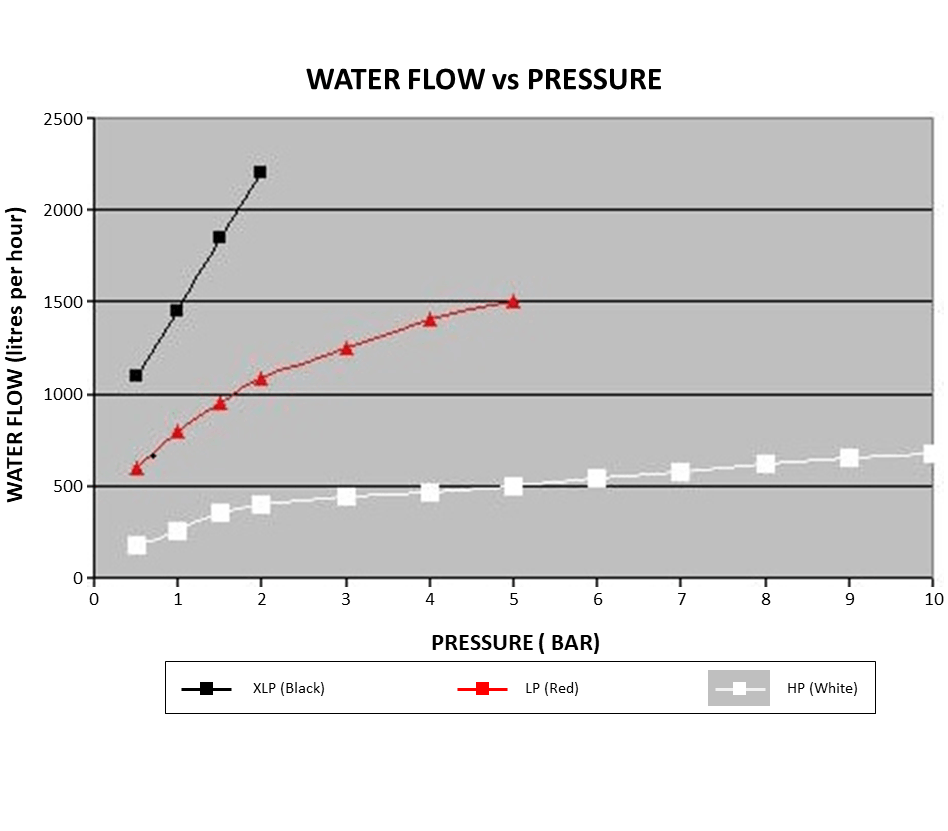

4. Flexible (in 3 colour-coded pressure ratings, High, Low and eXtra low)
5. Friendly (easy to install, minimal maintenance)
6. Adaptable (multiple float valves can be installed on a T or H configuration)
Valve Life – The life of a float valve should be 10 to 20 years if connected according to the installation instructions supplied and given protection against animal hooves.
Guarantee - 10 Years. Replacement is at the factory and at our discretion. In 15 years we have replaced only 14 seals, 2 floats and 3 faulty batches of rotating seals! Spares are obtainable, but the whole float valve might as well be replaced. There is no scrap value.
Compliance – The "Aqua-brooks" valve complies with JASWIC standards. Both a High and Low pressure float valve complied when tested by SABS (SABS 752/2000). The valves are regularly subjected to impact and torque testing. Every float is tested in water before installation.
- storage and header tanks
- air conditioning and heating water storage
- swimming pools and spas
- koi and fish ponds
- water features and fountains
- side-inlet toilet cisterns
- irrigation
- pharmaceutical and veterinary use
- watering troughs and watering systems for cattle, horses, sheep, dogs, poultry etc.
Some of our customers are:

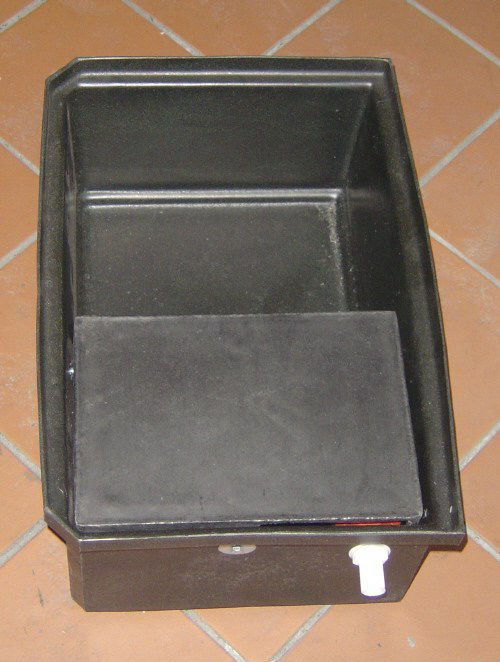

can be used to maintain the water level in swimming pools, koi ponds, small dams etc
use them in their watering troughs for pigs

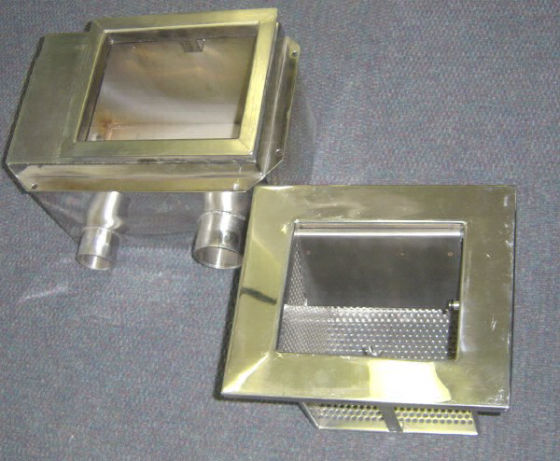

use them in "The Ultimate Weir"

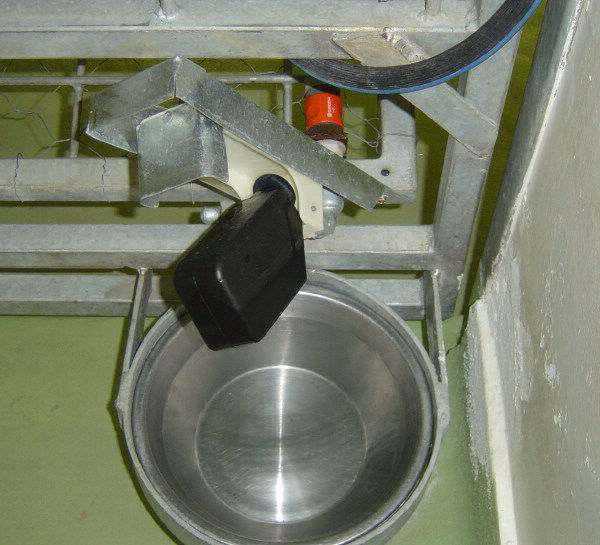

use them in their sterile drinkers

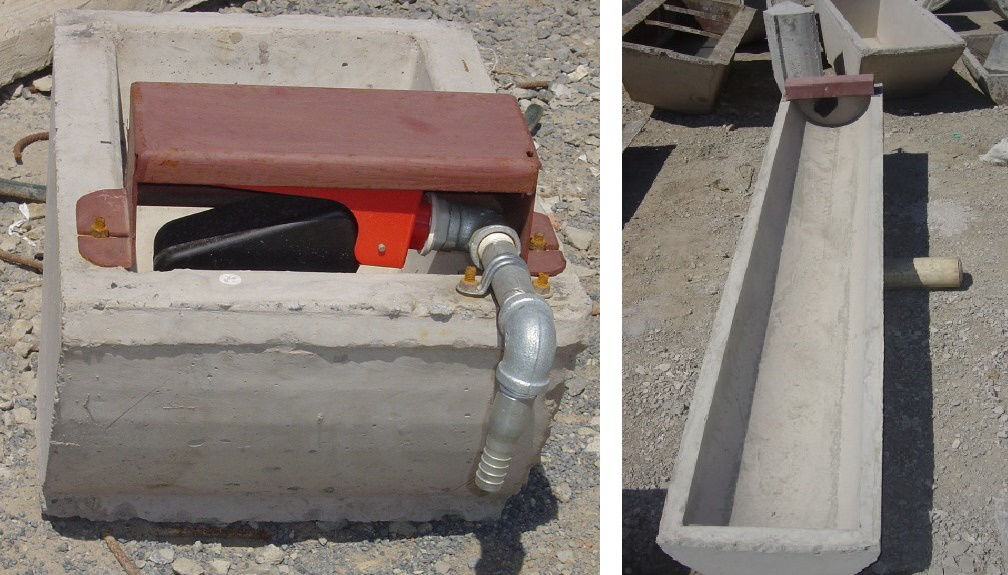

use them in concrete troughs

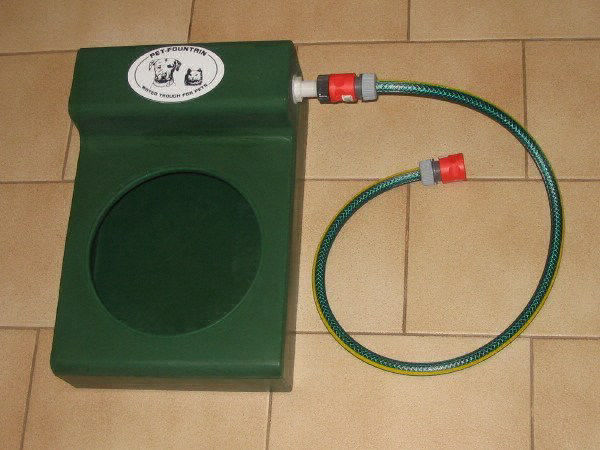

use them in their pet fountains
"Aqua-brooks" About Us
Deryck Brooks was from Zimbabwe, a land-surveyor by profession, and has been an inventor since 1953, filing his first patent in 1965. Among his inventions are interlocking concrete blocks to prevent erosion, interlocking paving, combining bacteria to optimize septic tanks, fly traps, a disposal method for chicken carcasses and in 1984, the Aqua-brooks float valve.
This float valve featured in articles in the Sunday Times Business Times (3 times), The Star, Landbou Weekblad, Farmers' Weekly, Management and Eureka magazines.
It earned Deryck a special Barnib Industrial Inventiveness Award and was runner-up in the Plastics Federation Design Awards in 1984. He took out a mortgage on his house in Montgomery Park to get the float valve on to the market as a water saver for toilet cisterns. It came into use in roof tanks, water troughs and swimming pools. Over time the Aqua-brooks became the "Ball Valve for the Farmer" and continues to be a low-cost and effective alternative to long-arm, brass, ball-float valves.
In 2005, having sold in excess of 200 000 float valves, Deryck became ill with various lung complaints related to sliding down asbestos waste dumps in his youth, smoking and breathing hazardous chemicals during his career as an inventor and manufacturer.
He has sold the business to Jonathan Vieler, a mining geologist by training, but continues to consult to Aqua-brooks on technical issues. Deryck now has time to get back into his garage and pursue his career as an inventor. Jonathan and a technician trained by Deryck, Theophilus Dlamini, continue with the production and sale of Aqua-brooks valves out of Greenside, Johannesburg.
Water remains a scarce resource, particularly in Africa. We have a vision of the Aqua-brooks float valve as the "Float Valve for Africa" and to this end are planning to distribute beyond the borders of South Africa. We are also looking at simple and inexpensive water management and information systems, based around the Aqua-brooks float valve.
